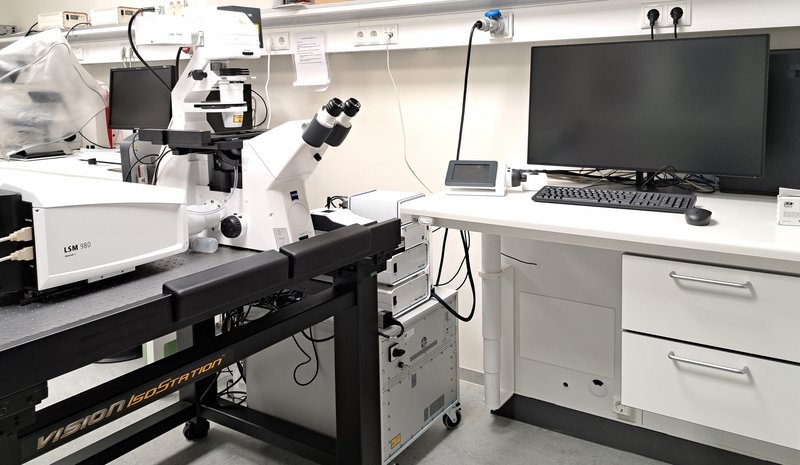

Zeiss LSM 980 with Airyscan 2, Confocal laser scanning microscope (inverted setup) 1872-551

Lasers

405, 445, 488, 514, 543 and 639 nm

Light source (widefield)

Colibri 5 with LEDs for DAPI, FITC, CY3, CY5

Detectors

2xPMT

4 channel GaAsP

TL-PMT

Airyscan 2

Objectives

10 x 0.45                                       (Plan-Apochromat)                                                WD 2,0 mm

20 x 0.8                                          (Plan-Apochromat)                                                WD 0,50 mm

25x 0.8 multi Imm Corr               (LD LCI Plan-Apochromat)                                  WD 0,57 mm

40x 1.4 oil                                      (Plan-Apochromat)                                                WD 0,13 mm

63x 1.4 oil                                      (Plan-Apochromat)                                                WD 0,19 mm

Camera

Axiocam 820 color

Stage top incubator with temperature and CO2 control.

Motorized stage

Software modules

FRET/ FRAP

3D Tool kit

Airyscan joint deconvolution
